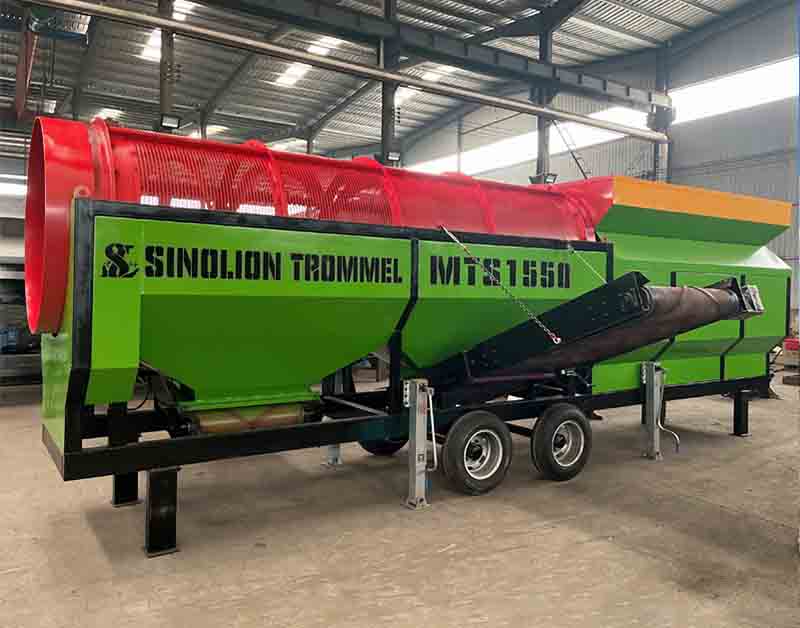

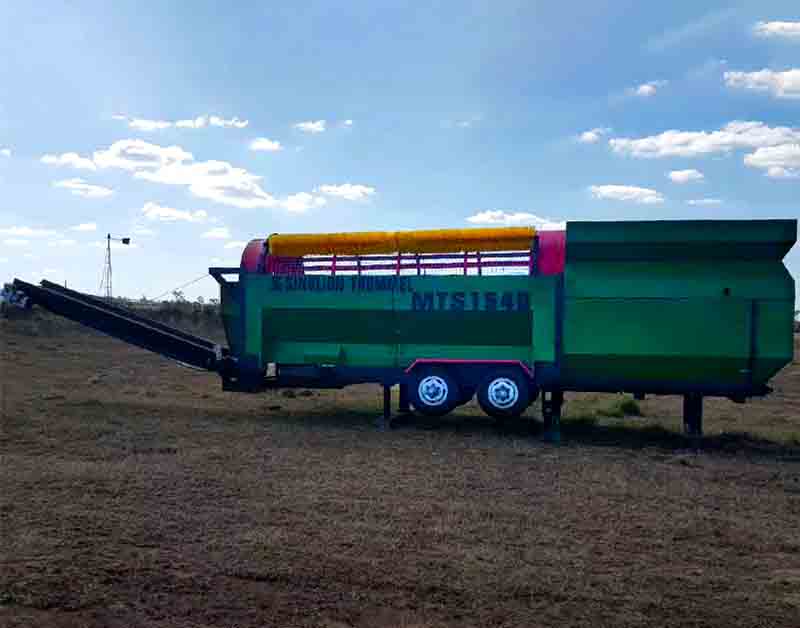

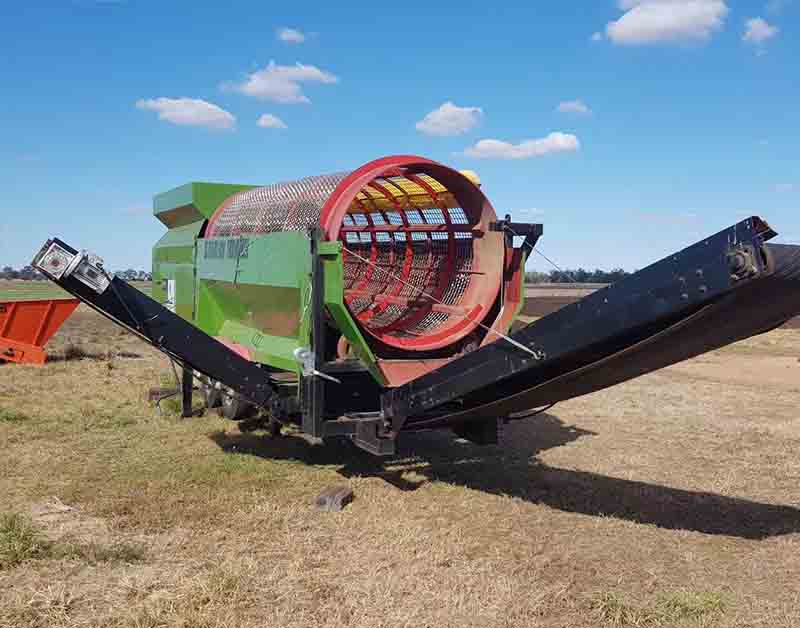

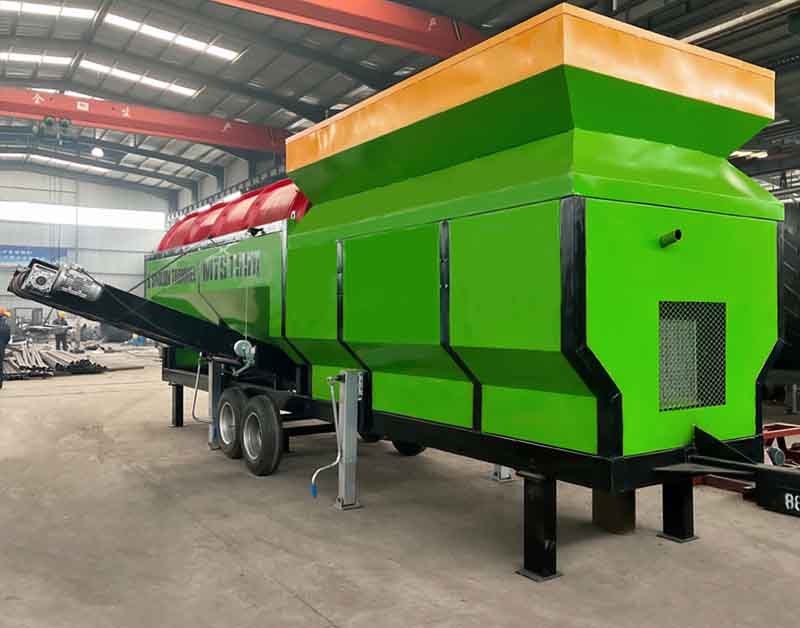

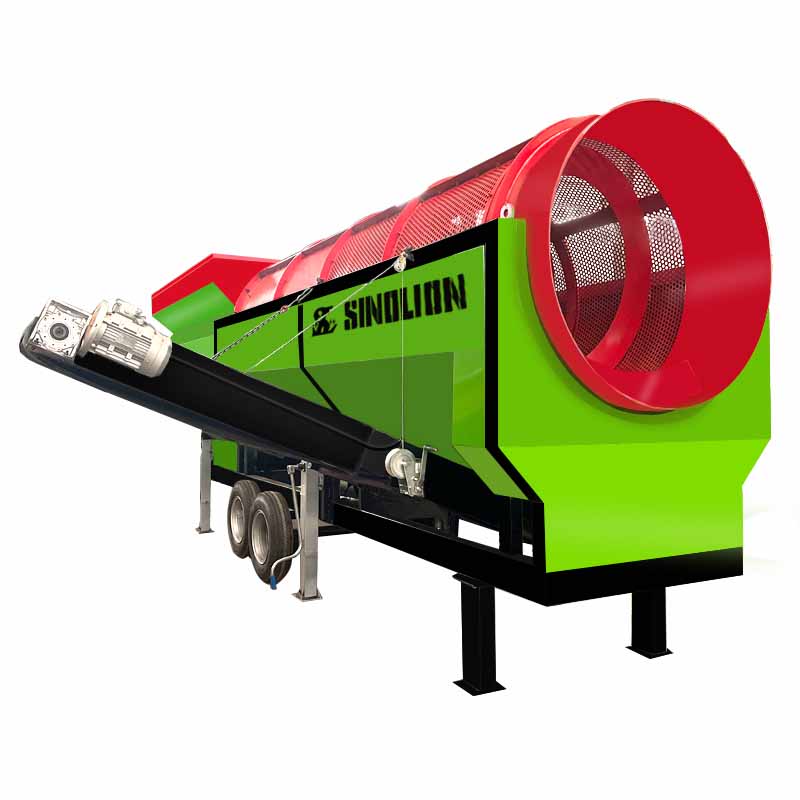

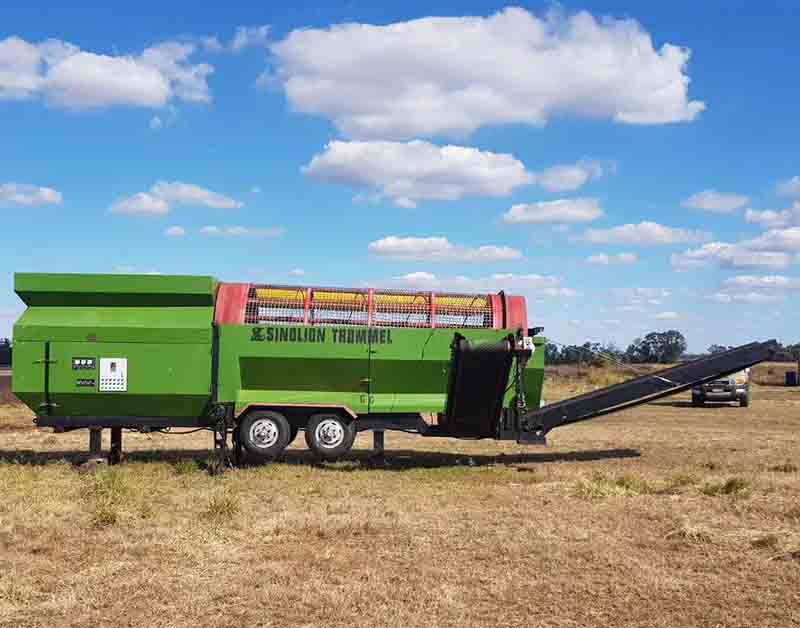

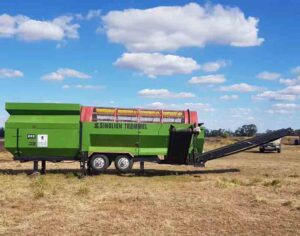

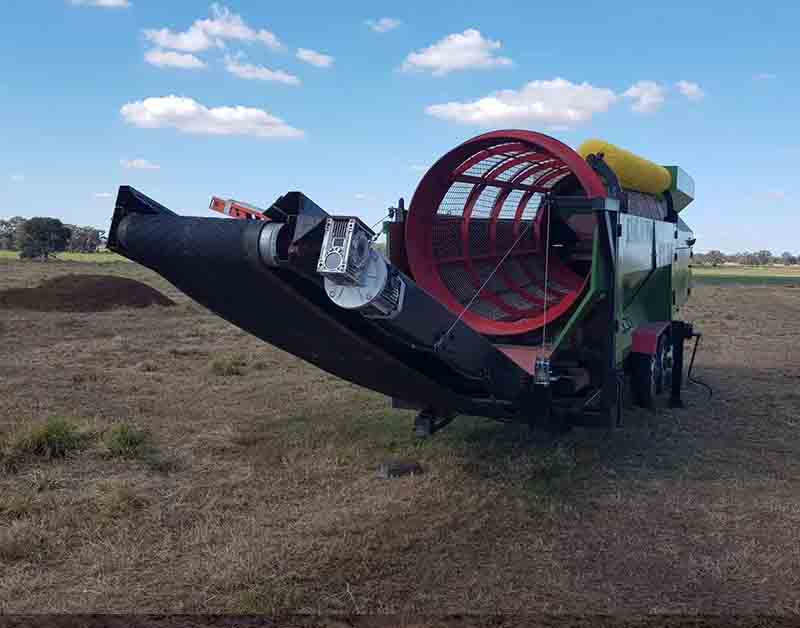

MTS1550 Heavy-Duty Mobile Trommel Screen (50–90 T/H)
High-Throughput Mobile Screening Plant | 1500 × 5000 mm Drum | Dual Hydraulic Folding Conveyors
Commercial Applications
MTS1550 delivers high-throughput screening for:
- MSW & RDF Recycling
- Commercial Composting
- Topsoil & Peat Moss
- Mining & Aggregates
Its heavy-duty mobile design supports dependable separation for demanding commercial and industrial material-processing operations.
| Specification | Details |
|---|---|
| Model | MTS1550 |
| Drum Diameter | 1,500 mm (59 in) |
| Drum Length | 5,000 mm (197 in) |
| Effective Screening Area | ~23.5 m² |
| Processing Capacity | 50 – 90 T/H |
| Screen Mesh Options | Manganese wire mesh / Punched plate (5–100 mm) |
| Hopper Volume | 3.5 m³ with heavy-duty feed belt & speed control |
| Power | 37 kW Electric Motor or 55 kW Diesel Generator Set |
| Conveyors | Dual hydraulic folding conveyors (Fine & Oversize) |
| Chassis | Dual-axle heavy-duty trailer with air brakes |
- Conveyor belts in lengths of 3,4,5 and 6 meters
- More fractions, it is possible to combine up to 3 different sieve sizes.
